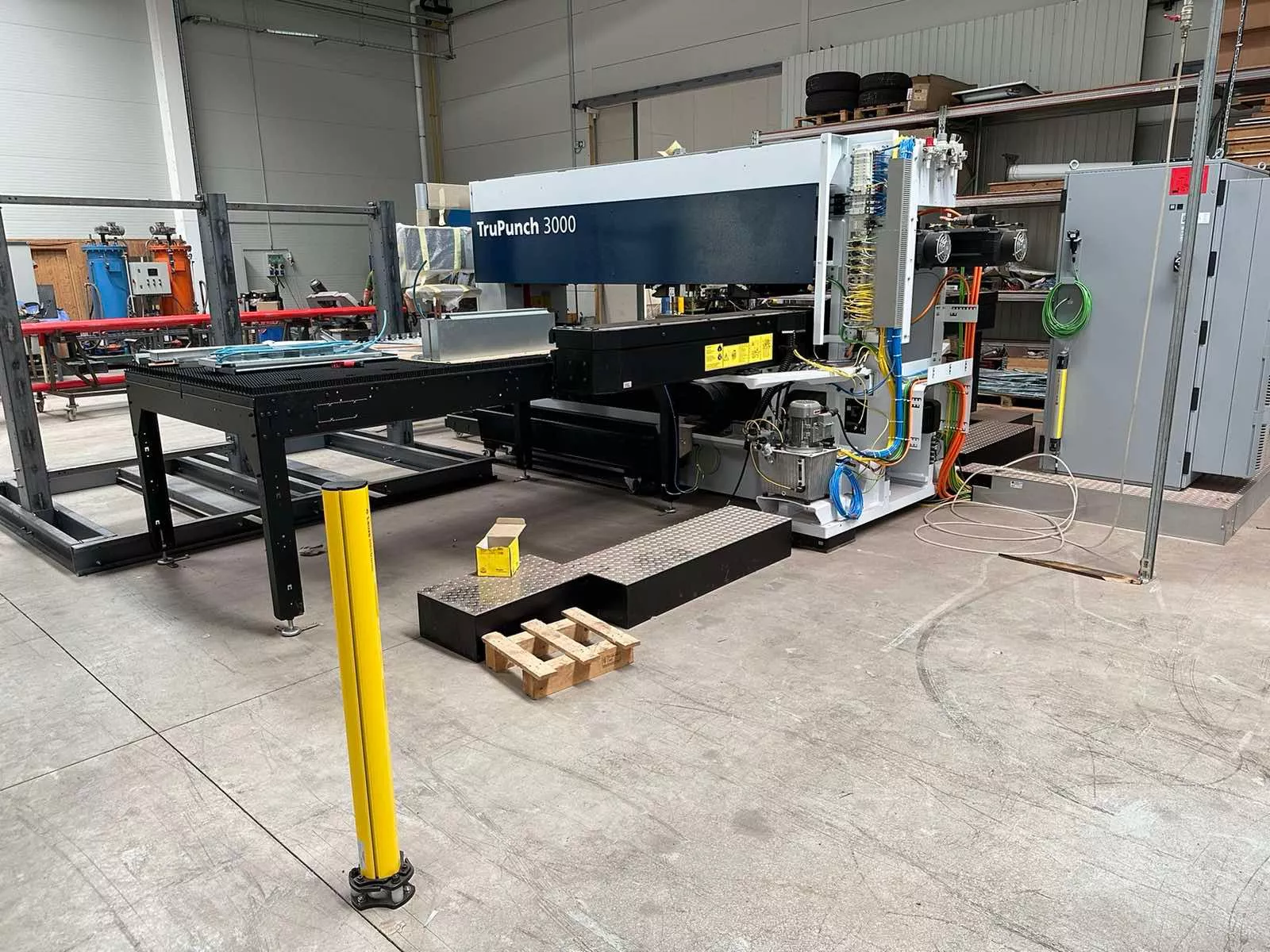

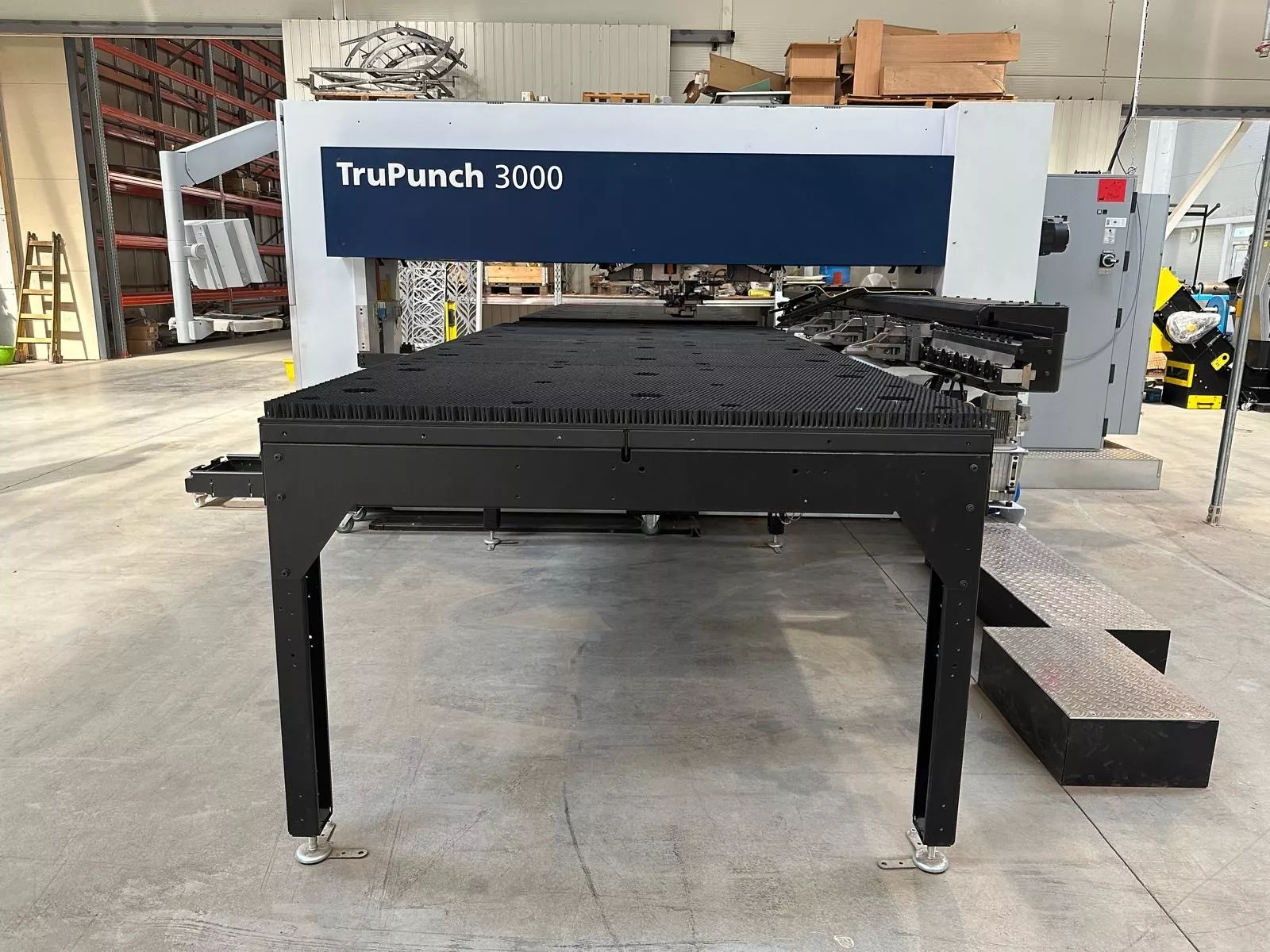

Dimensions, weights

• Width 7644 mm
• Depth 7666 mm
• Height 2200 mm
• Weight with all units 13800 kg

Control, hardware, electrics

• Hard disk type SSD
• Number and size of the hard disk 2 GB x 120 GB
• Hard disk memory for customer programs 10 GB

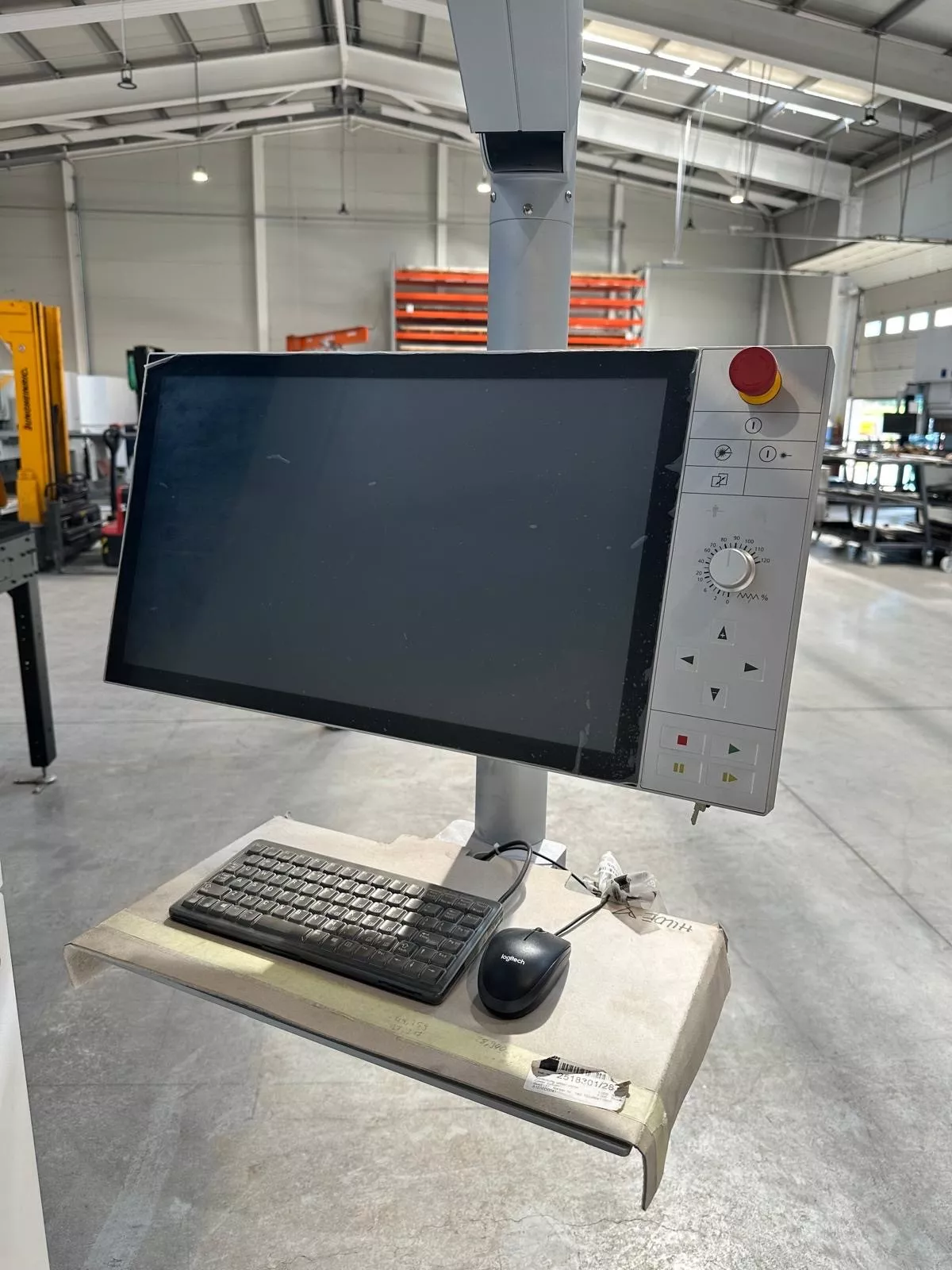

• Screen touch screen
• Screen size 21.5 in
• Interface USB
• Network connection RJ45
• Control type Bosch CML75
• Operating system Windows 10 IoT

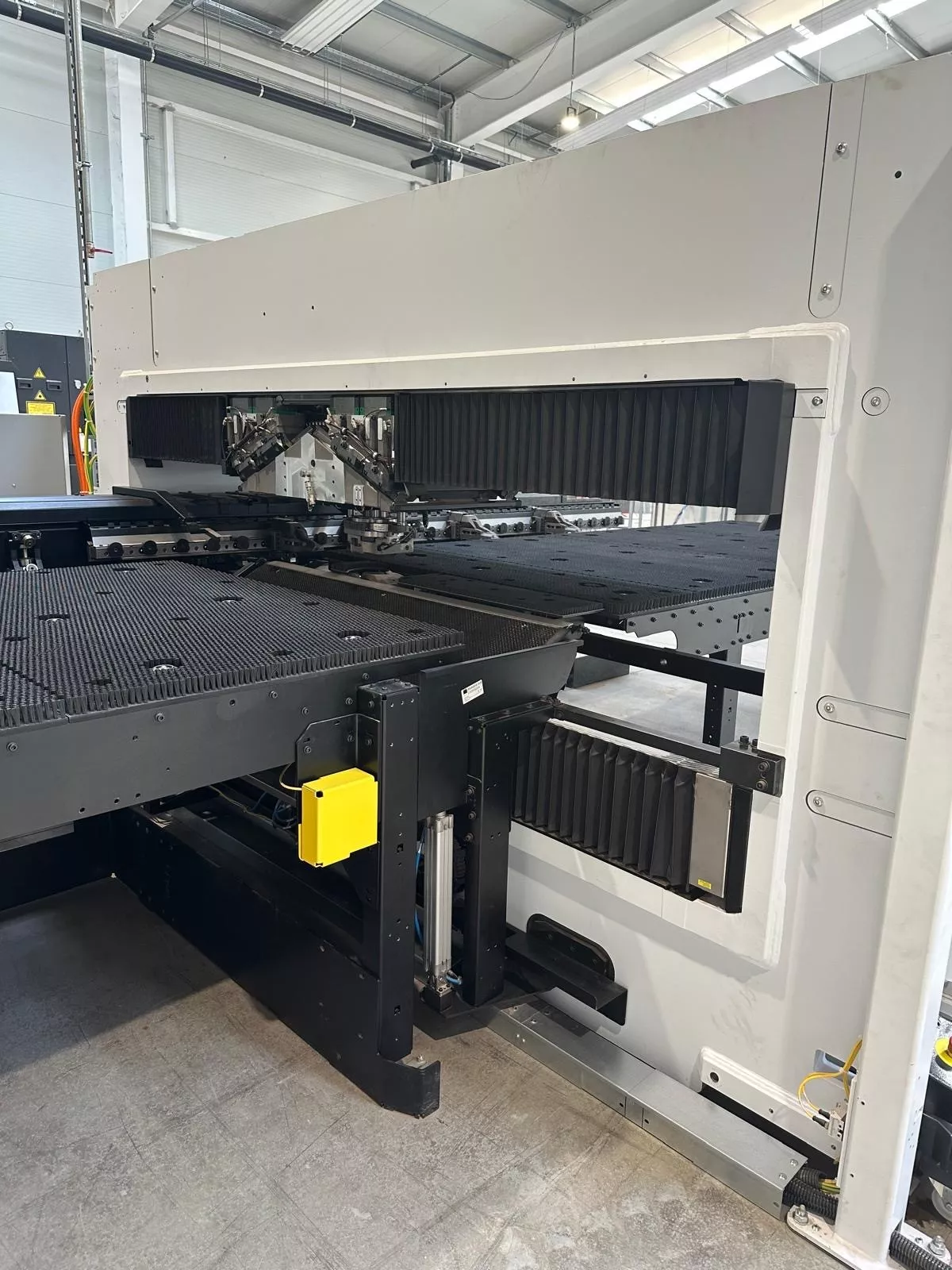

Axis data

• X/Y/C axis drive NC-controlled, maintenance-free three-phase current servomotors
• Punching head drive Electric drive
• Maximum axis speeds - X axis 90 m/min
• Maximum axis speeds - Y axis 60 m/min
• Maximum axis speeds - Simultaneous 108 m/min
• Maximum axis speeds - C axis (punching) 350 rpm
• Maximum axis speeds - C axis (tapping) 350 rpm
• Maximum punching stroke rate (E = 1 mm) 690 1/min
• Maximum marking stroke rate 1000 1/min
• Precision - Positioning deviation Pa +/- 0.1 mm
• Precision - Position range Ps +/- 0.03 mm
• Precision - Smallest programmable increment 0.001 mm

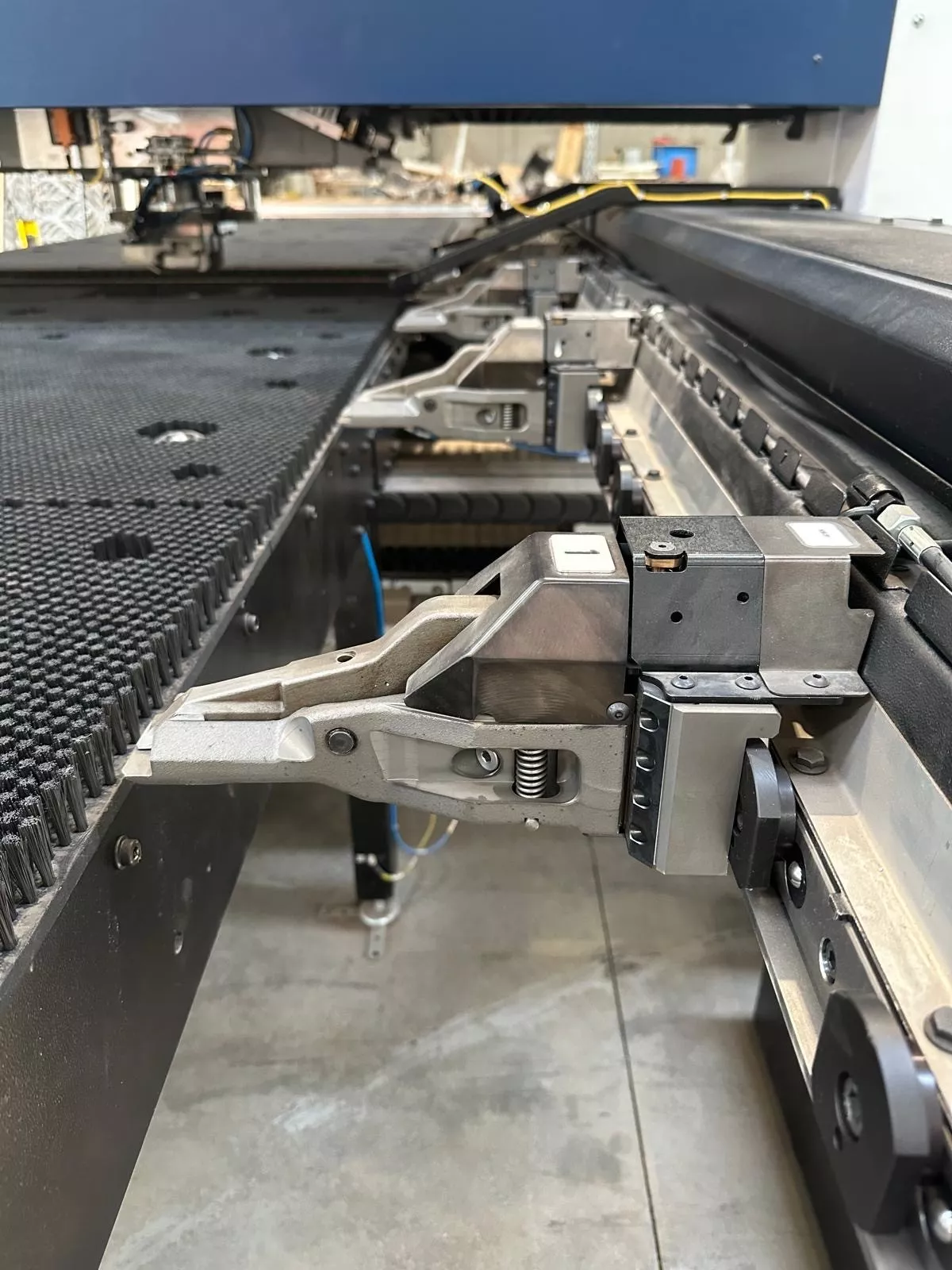

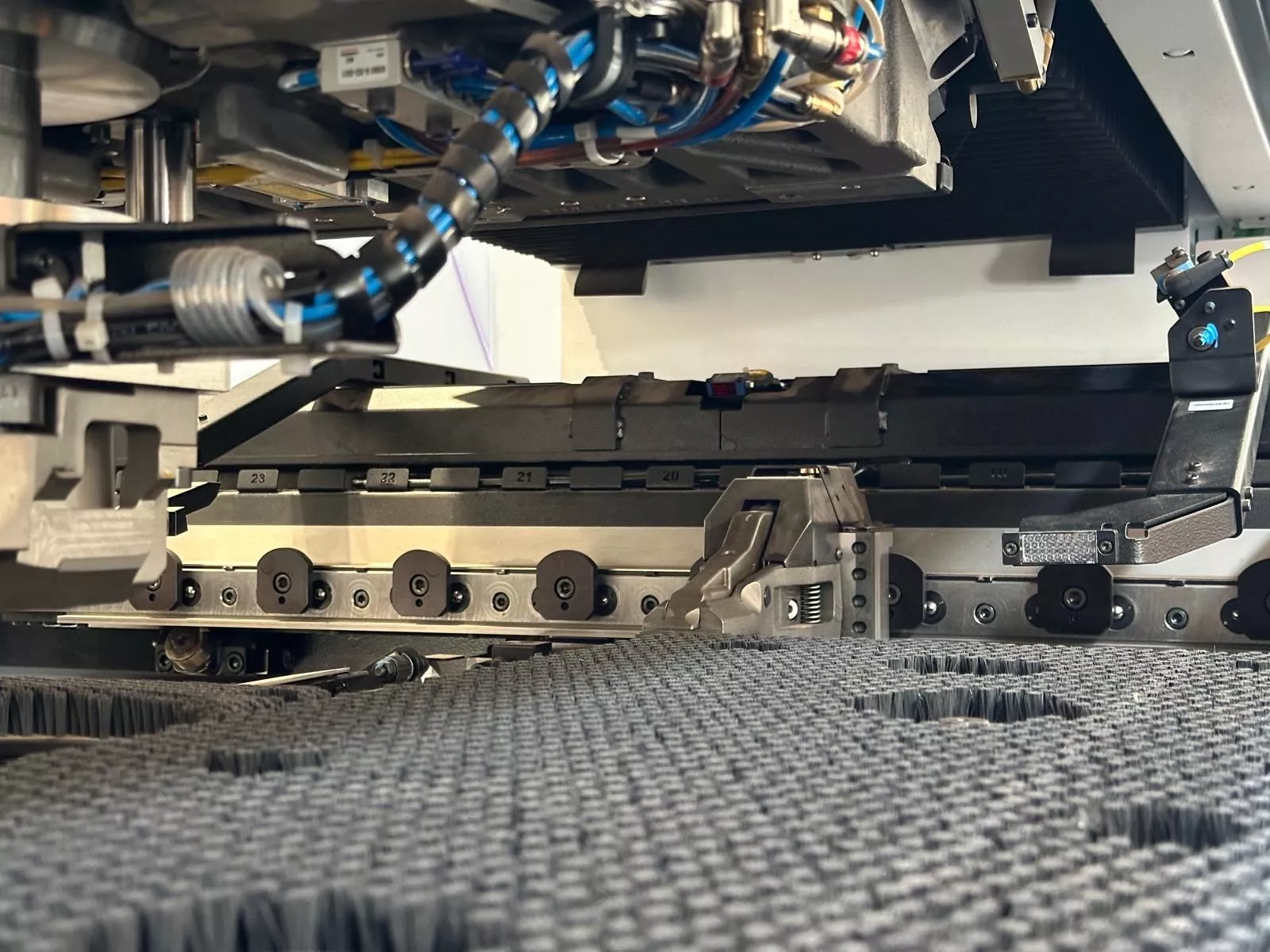

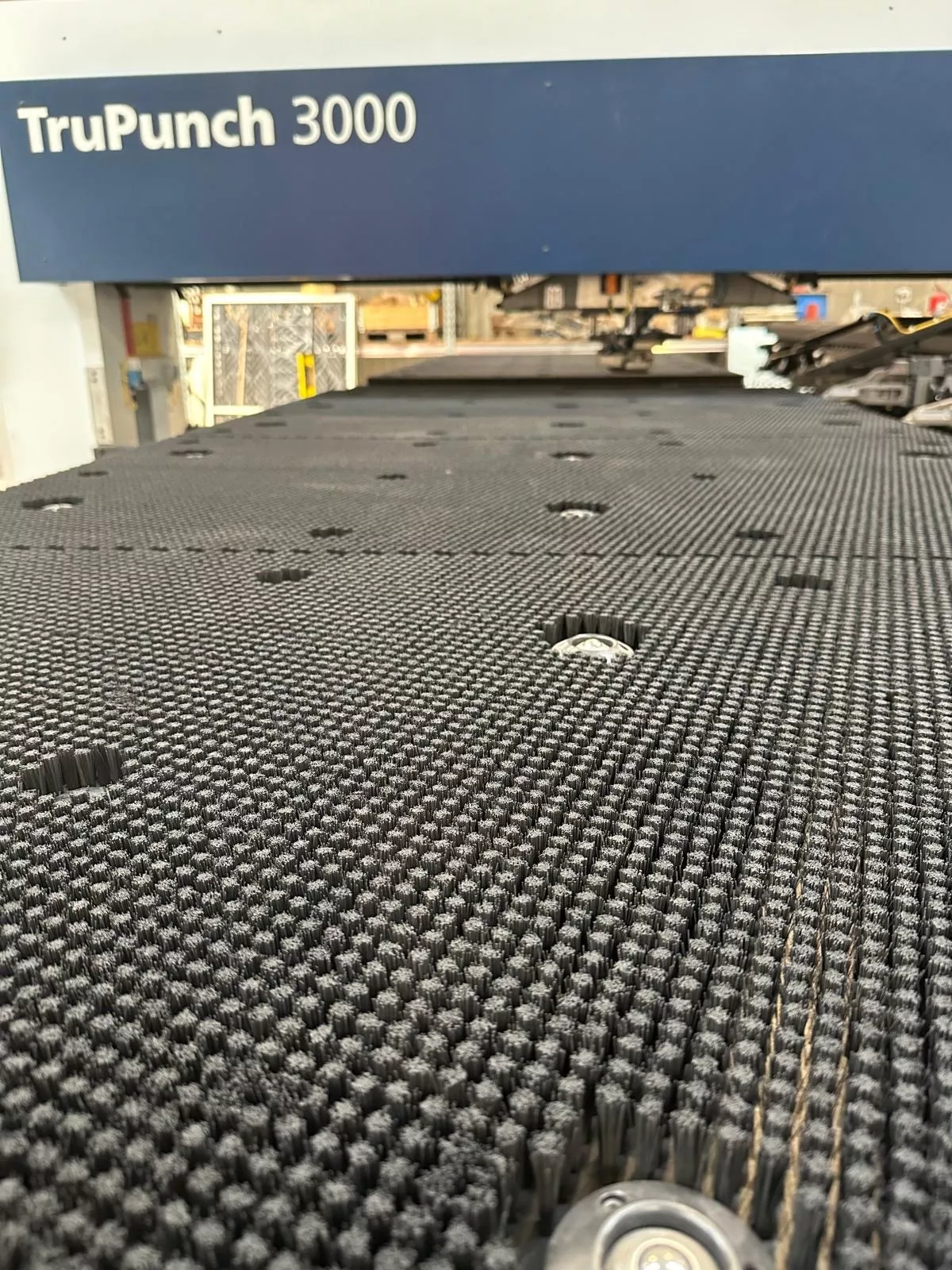

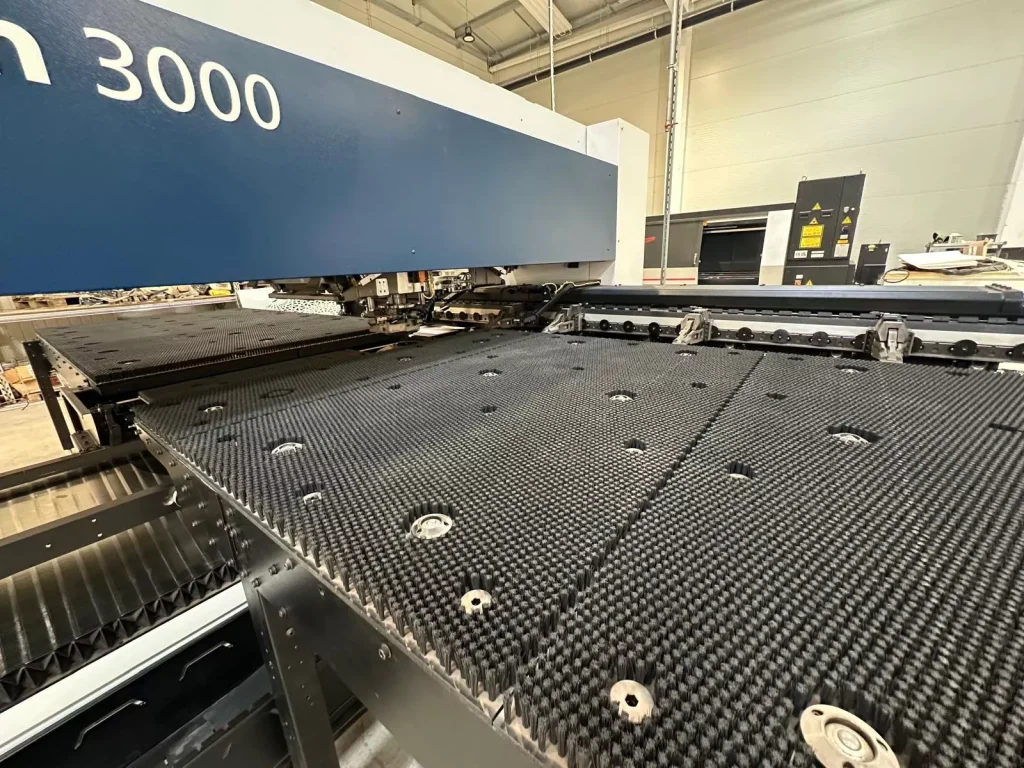

• Working range and workpiece size
• Maximum sheet thickness 6.4 mm
• Maximum workpiece weight 230 kg
• Working range - X axis 3000 mm
• Working range - Y axis 1550 mm

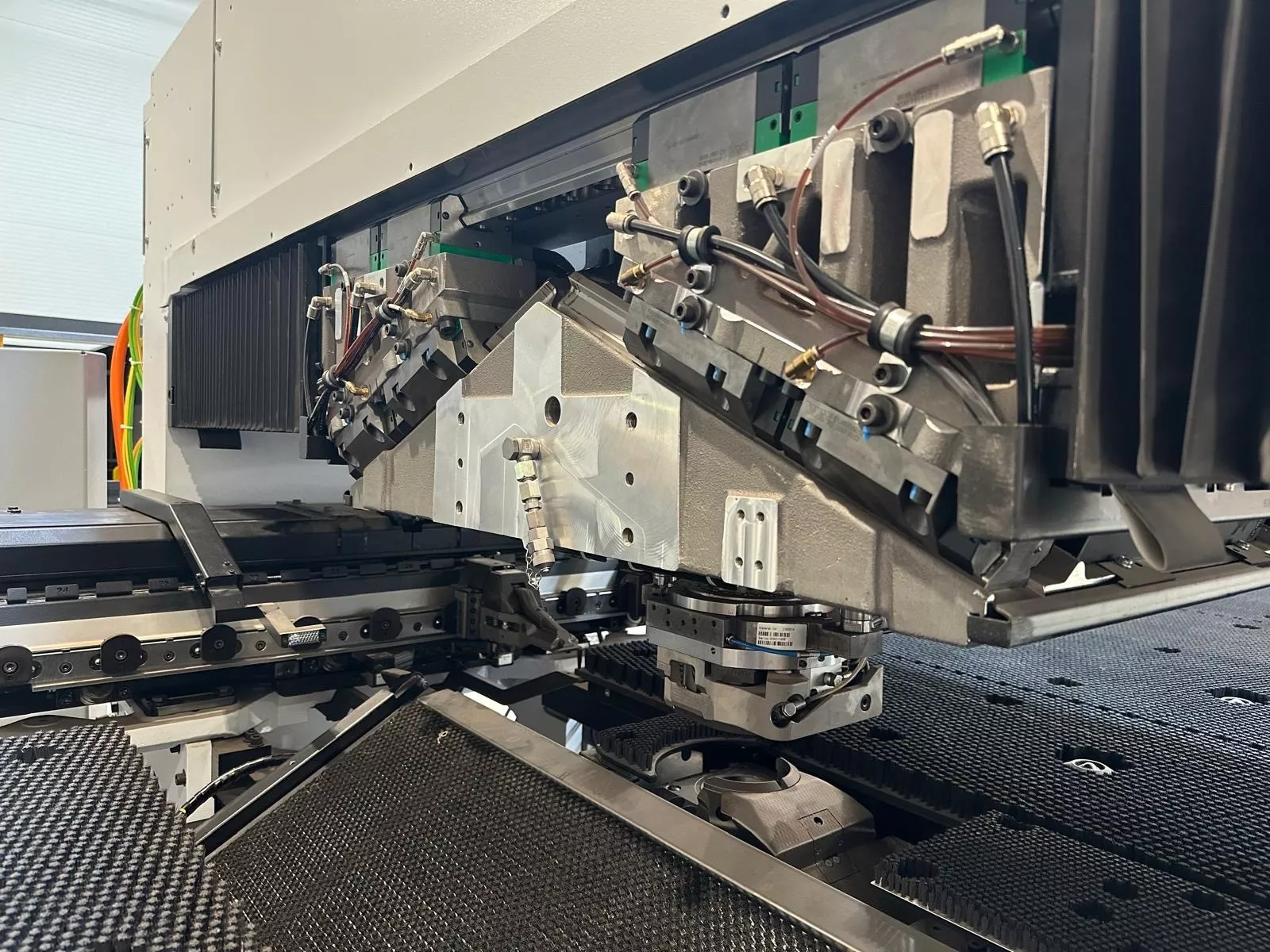

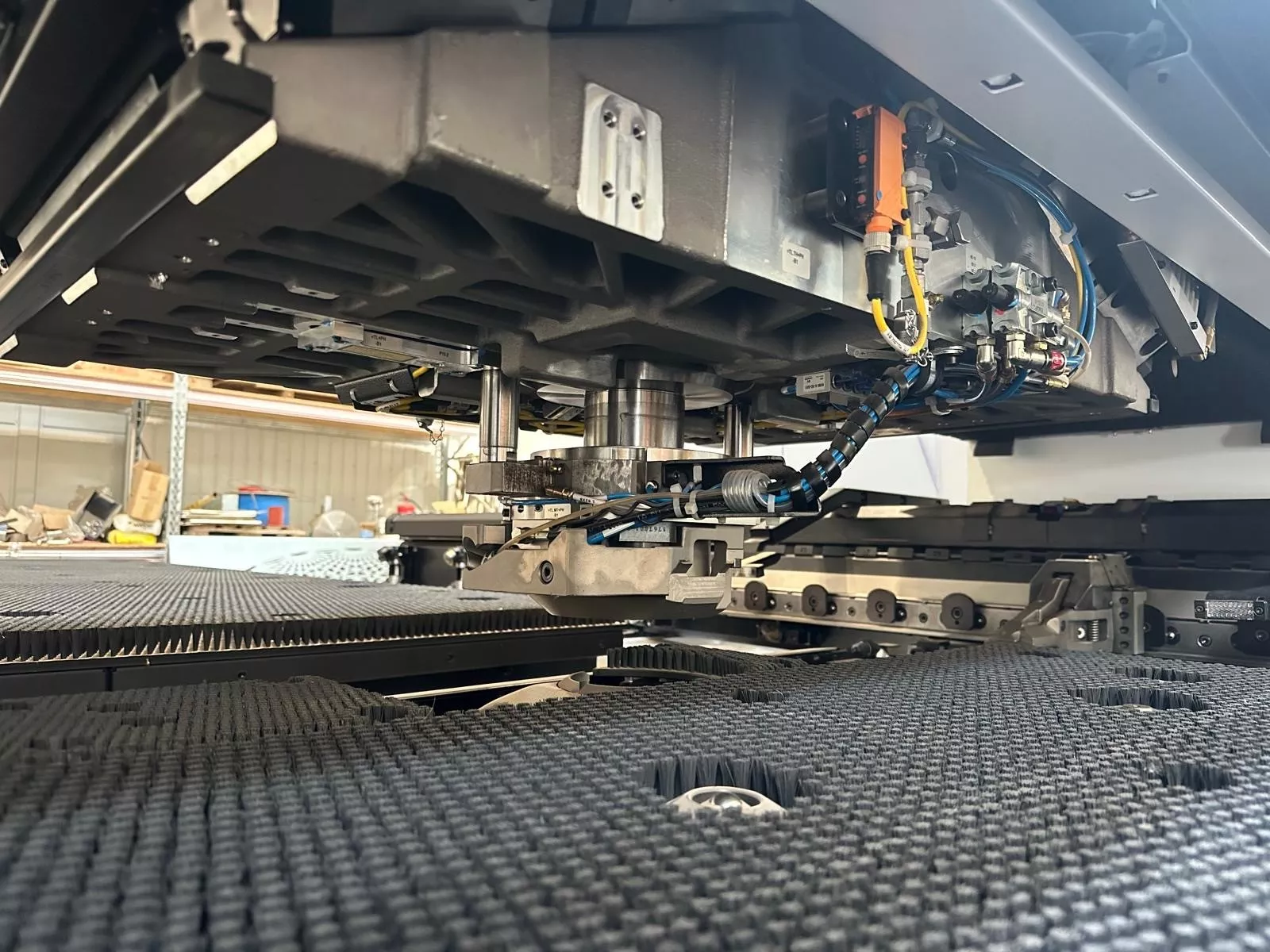

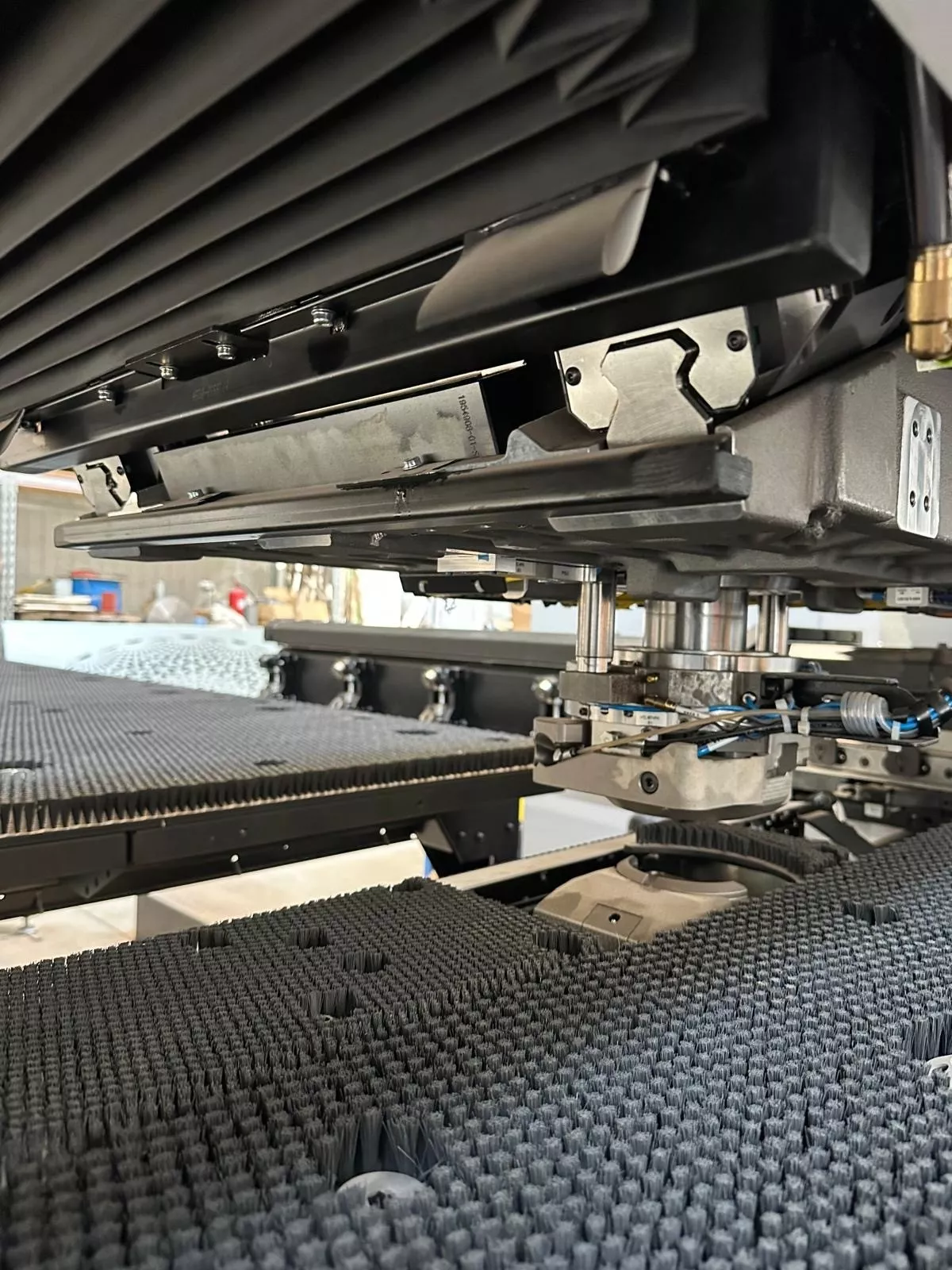

Punch-specific data

• Maximum punching force 180 kN
• Maximum presser foot force 20 kN
• Maximum tool size, punching (outer circle) 76.2 mm
• Maximum tool size, forming (outer circle) 101.6 mm
