| Dimensions, weights | |
| Width | 9945 mm |
| Depth | 8862 mm |
| Height | 2500 mm |
| Weight with all units | 18500 kg |
| Control, hardware, electrics | |
| Control type | Rexroth IndraMotion MTX CMP70 |
| Operating system | Windows Embedded |
| Hard disk type | HD |
| Hard disk size | 320 GB |
| Hard disk memory for customer program | 4 GB |
| Screen | Touchscreen |
| Screen size | 17 inches |
| Interface | USB |
| Network connection | RJ45 |
| Axis data | |
| X/Y/C axis drive | NC regulated maintenance free servo-motors |
| Punching head drive | Electro-hydraulic drive |
| Maximum axis speeds - X axis | 90 m/min |
| Maximum axis speeds - Y axis | 90 m/min |
| Maximum axis speeds - Simultaneous | 108 m/min |
| Maximum axis speeds - C axis (punching) | 330 rpm |
| Maximum axis speeds - C axis (tapping) | 330 rpm |
| Max. punching stroke rate (E = 1 mm) | 917 RPM |
| Max. marking stroke rate | 2800 RPM |
| Working range and workpiece size | |
| Working range in punching mode without repositioning - X axis | 3050 mm |
| Working range in punching mode without repositioning - Y axis | 1550 mm |
| Working range in laser cutting mode without repositioning - X axis | 3050 mm |
| Working range in laser cutting mode without repositioning - Y axis | 1550 mm |
| Working range in combination punching/laser mode with repositioning - X axis | 3050 mm |
| Working range in combination punching/laser mode with repositioning - Y axis | 1550 mm |
| Max. sheet thickness | 6.4 mm |
| Max. workpiece weight | 230 kg |
| Punch-specific data | |
| Max. punching force | 180 kN |
| Max. tool size, punches (outer circle) | 76.2 mm |
| Max. tool size, forms (outer circle) | 101.6 mm |
| Max. tool size, optional (outer circle) | 110 mm |
| Tool change time, standard tool | 3.2 sec |
| Tool change time, MultiTool | 0.3 sec |
| Number of linear magazine stations | 25 Pieces |
| Number of tools when using MultiTool / clamps | 22 - 220 / 3 Pieces |
| Laser-specific data | |
| TruDisk 3001 - Max. laser output | 3000 W |
| TruDisk 3001 - Max. sheet thickness, mild steel (O2) | 6 mm |
| TruDisk 3001 - Max. sheet thickness, mild steel (N2) | 6 mm |
| TruDisk 3001 - Max. sheet thickness, stainless steel (N2) | 6 mm |
| TruDisk 3001 - Max. sheet thickness, aluminum (N2) | 5 mm |
| Loading / Part removal | |
| Max. part size, part removal flap, punches (standard) | 500 x 500 mm |
| Max. part size, part removal flap, laser (standard) | 500 x 500 mm |
| Connected loads, ambient temperature | |
| Pressure range, compressed air connection min. (flowing) / max. (static) | 7 / 14 bar |
| Consumption values | |
| Max. compressed air consumption, machine | 37.5 m3/h |
| Painting | |
| Main color, machine | White, NCS S 0505-R80B |
| Secondary color, machine | Blue, RAL DESIGN 250 20 20 |
| Color, switch cabinet/peripheral device | Grey, RAL 7040 |
| SheetMaster 3000 x 1500 mm (AK04) | |
| General | |
| Max. traversing speed of X axis | 180 m/min |
| Max. traversing speed of Z axis | 30 m/min |
| X/Z axis drive | NC regulated maintenance free servo-motors |
| Min. sheet thickness | 0.5 mm |
| Max. sheet thickness | 6,4 mm |
| Max. sheet weight | 230 kg |
| Load | |
| Max. sheet format | 3000 x 1500 mm |
| Min. sheet format | 600 x 370 mm |
| Painting | |
| Main color, machine | White, NCS S 0505-R80B |
| Secondary color, machine | Blue, RAL DESIGN 250 20 20 |
| Secondary color, machine | Blue, RAL DESIGN 250 20 20 |
| GripMaster 3000 x 1500 mm | |
| Scrap, scrap skeleton | |
| Max. sheet thickness | 6,4 mm |
| Max. stack height | 230 mm |
| Max. skeleton size | 3000 x 1500 mm |
| Max. skeleton weight | 230 kg |
| Max. skeleton weight = Max. weight of skeleton stack | 2000 kg |
| Painting | |
| Main color, machine | White, NCS S 0505-R80B |
| Secondary color, machine | Blue, RAL DESIGN 250 20 20 |
| Machine offer | |

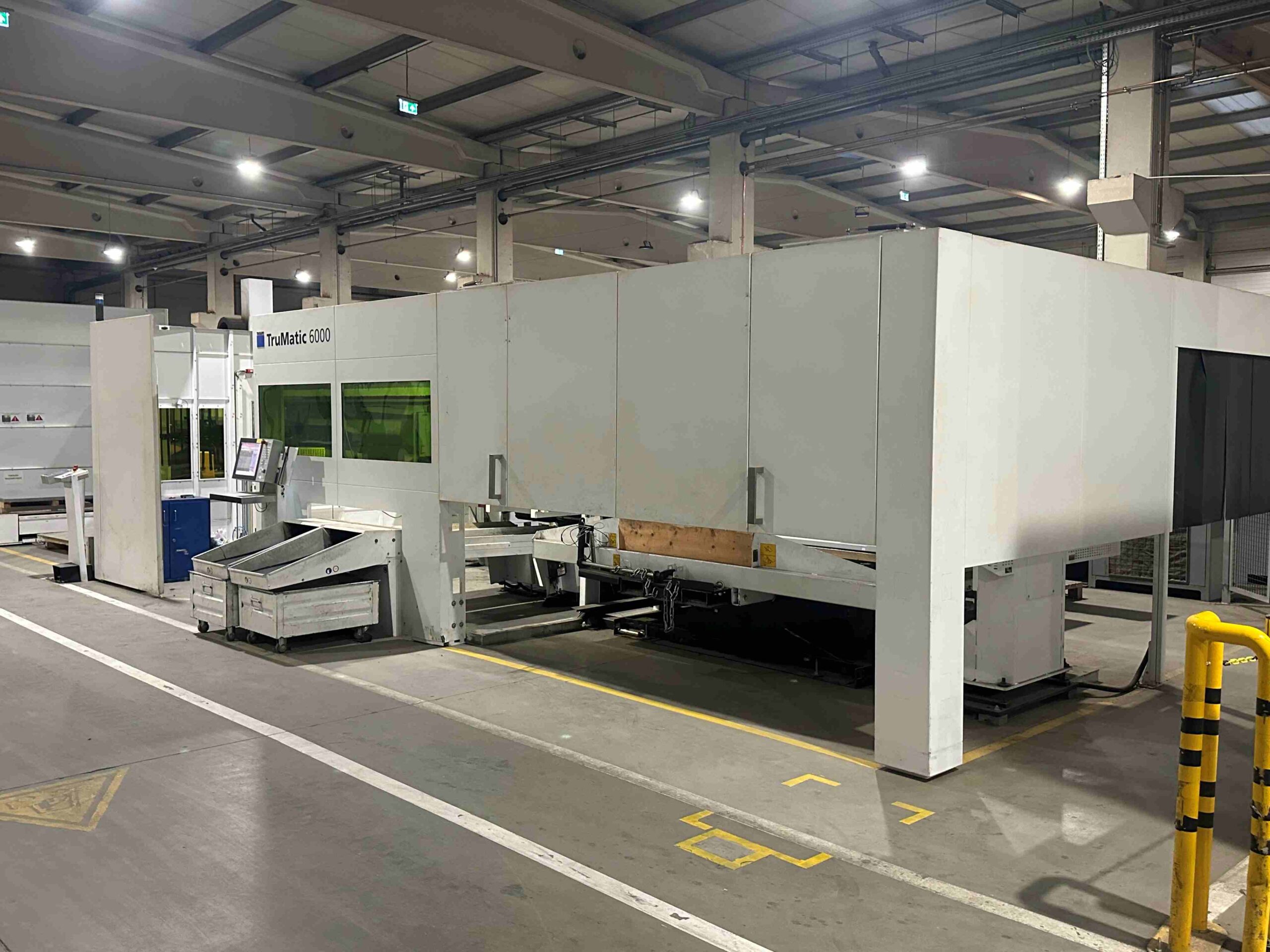

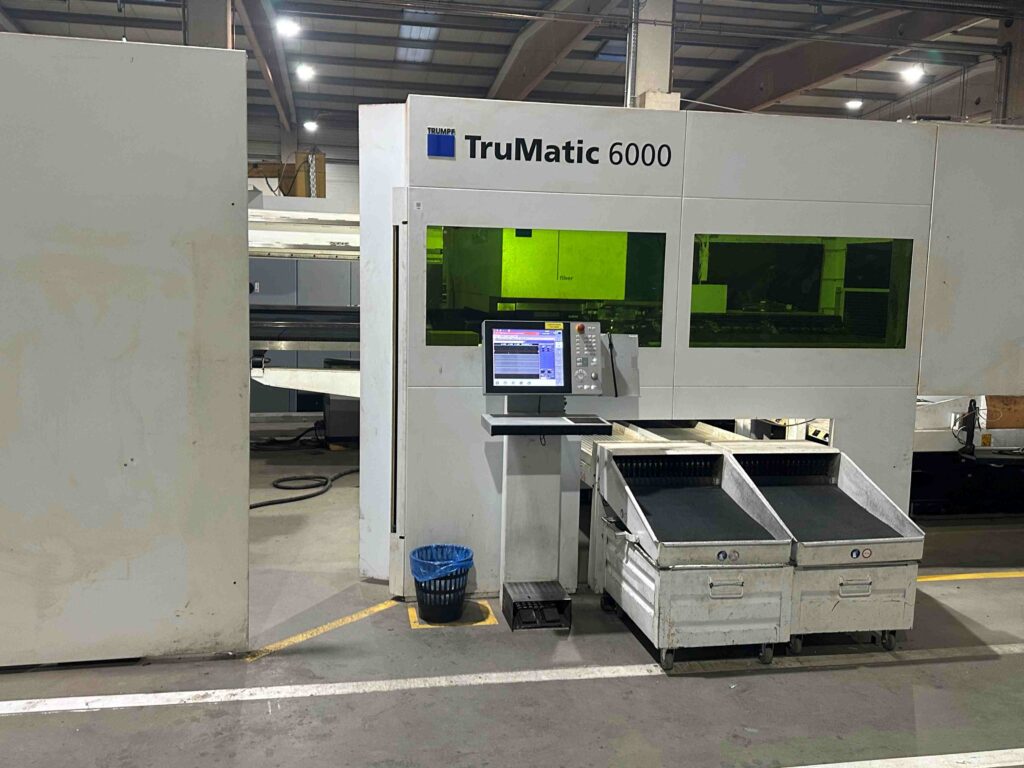

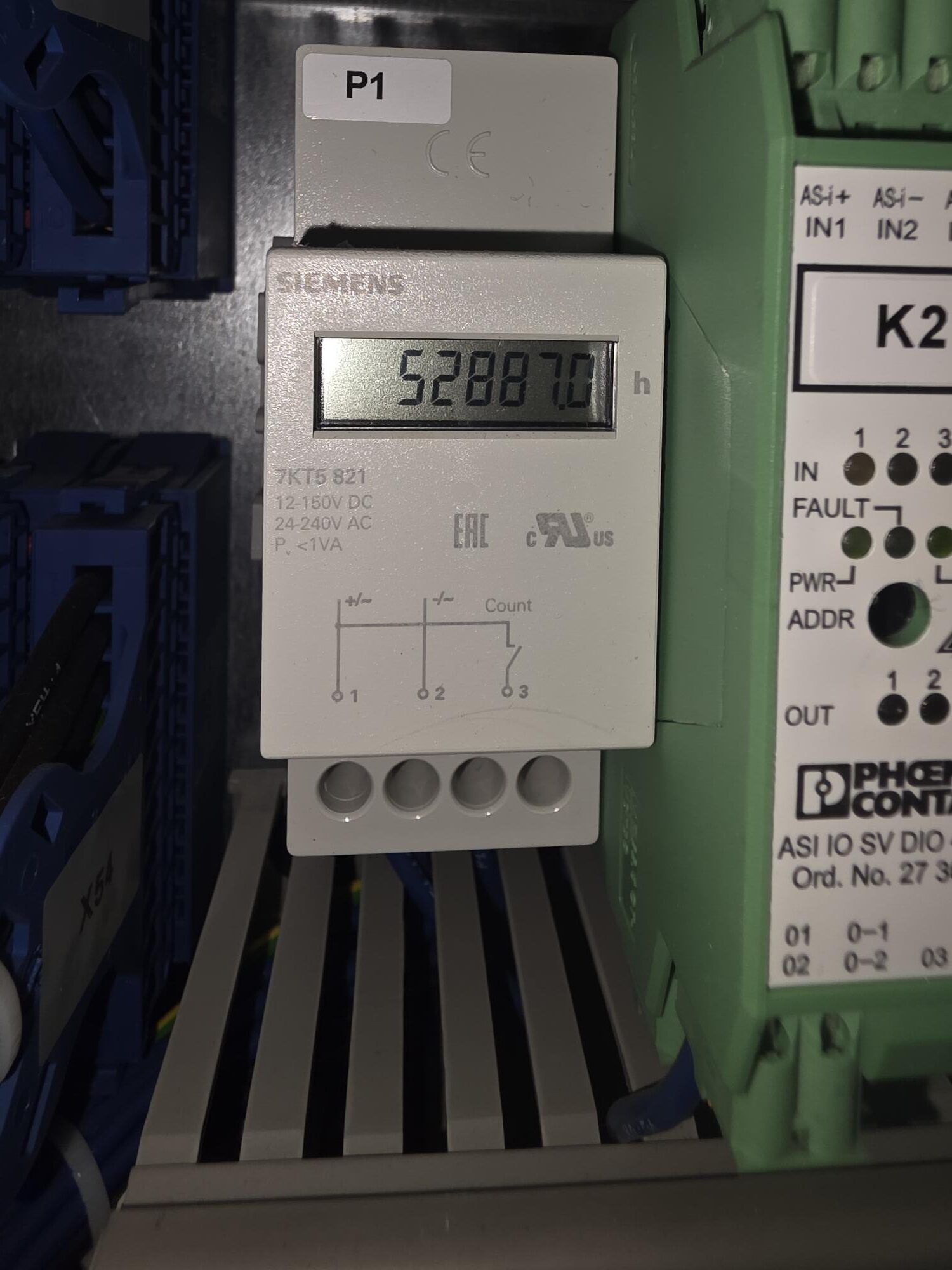

| TruMatic 6000 fiber large format (K06) | |
| Machine
- C-frame - Coordinate guide - Linear magazine with 25 spots for clamps and tools - Hydraulic clamps (3 pieces) - Drives with maintenance-free 3-phase servo motors - Repositioning unit with programmable stripper - Ball-fitted tables - Foot switch for closing clamps - Beam guard with direct access - 2 part removal flaps 500 x 500 mm incl. sensor for part removal flaps - NitroLine - FocusLine - FastLine - FlyLine - Slag ball detection - Ejector cylinder for laser cut parts - Transportation and assembly fixture |
|

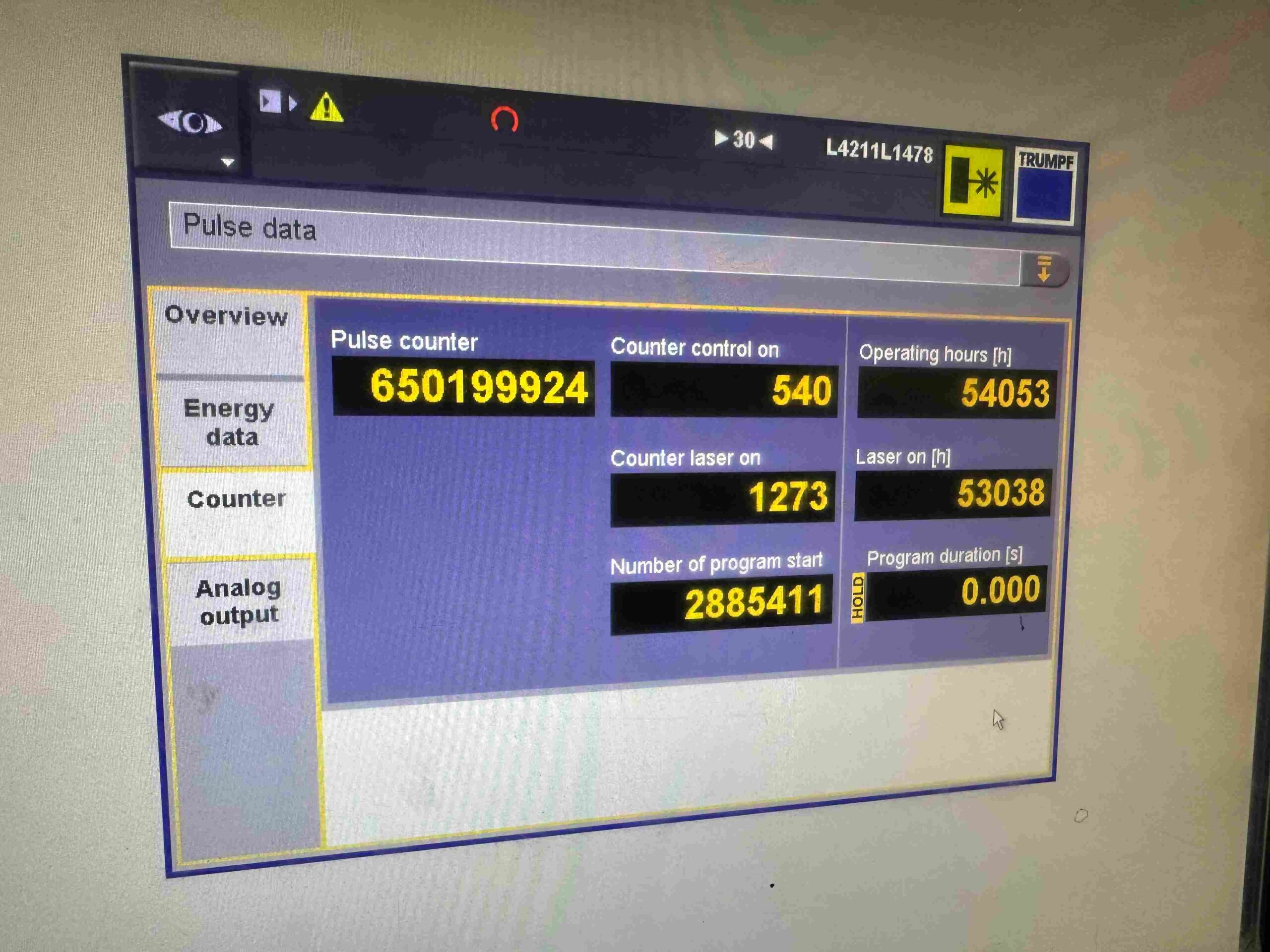

| TRUMPF Laser
- Solid state laser TruDisk 3001 with 1 laser output - Excitation by pumping diodes - Encapsulated beam delivery (TruFlow) - Fiber optic cable according standard layout (10m) - Logbook function laser - Separate energy supply of TruDisk |
|
| Compact cutting unit
- Solid-state compact cutting unit - Protective glas - Collision protection - ControlLine |
|

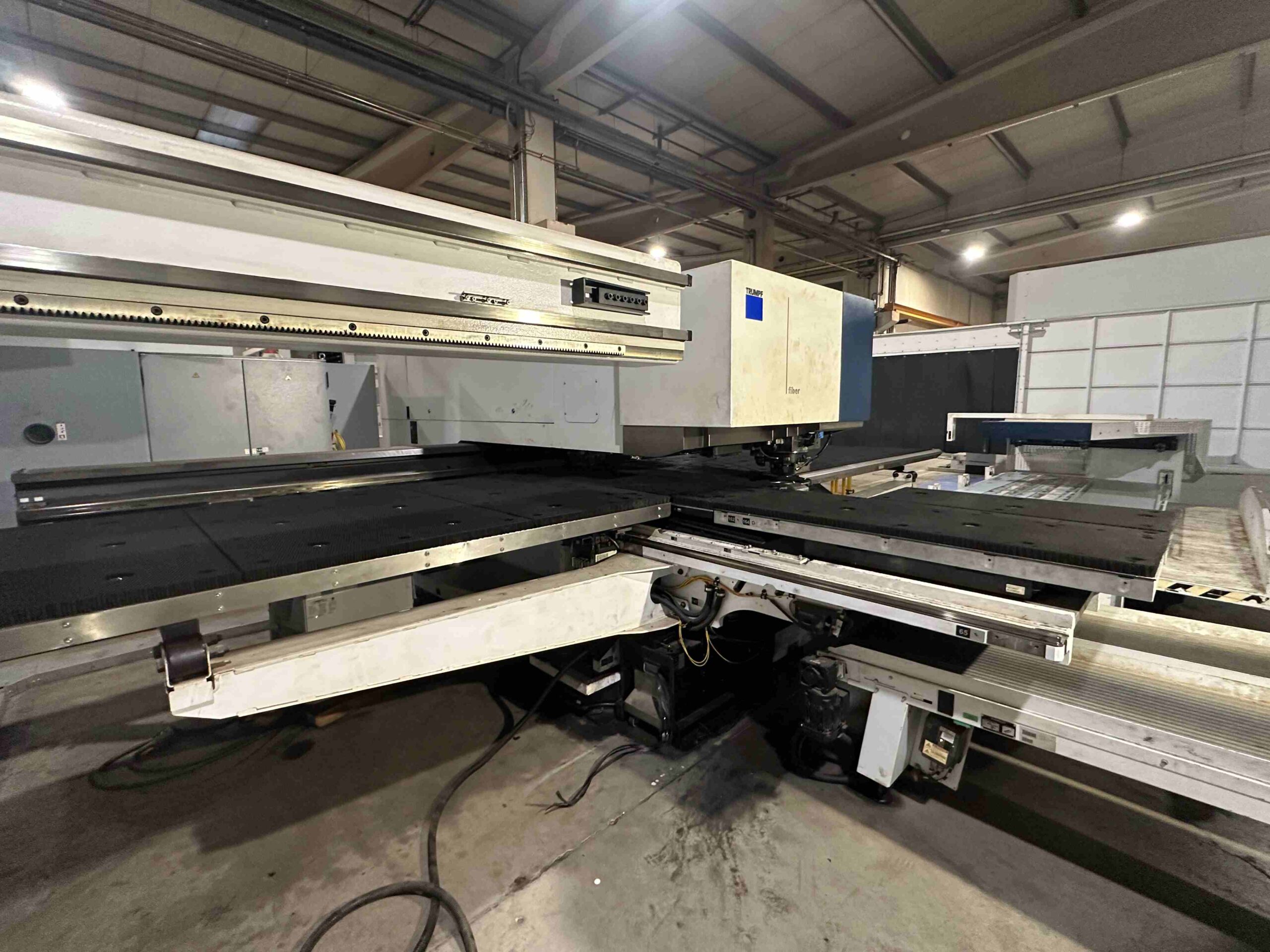

| Punching head
- Electro-hydraulic punching head - Rotatable single tool adapter - Programmable position of the presser foot - Tool length compensation - Spray lubrication for punches - Vacuum slug removal - Calculation of fill level in die base - Stroke rate punch - Level monitoring of tool lubrication |
|

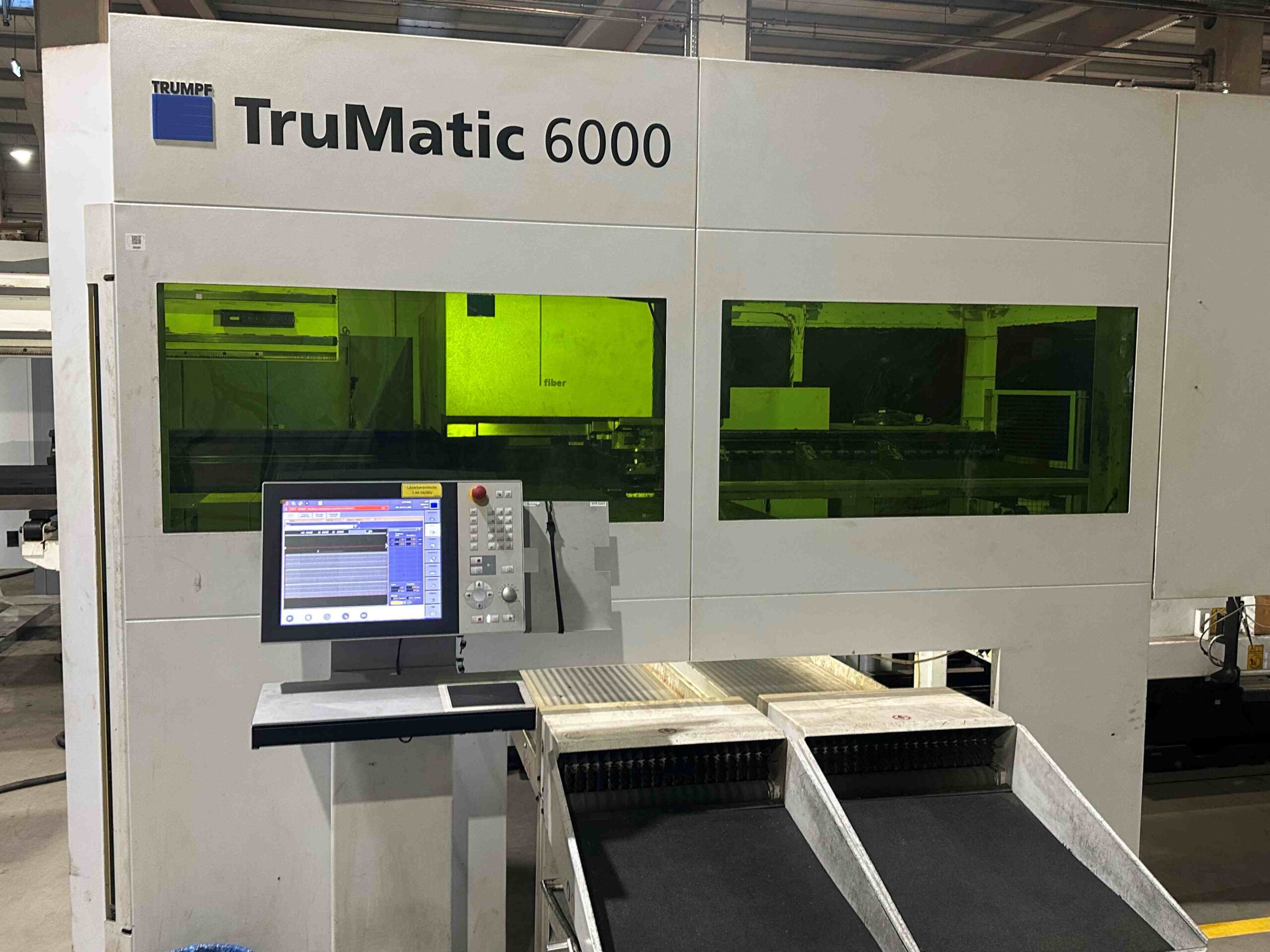

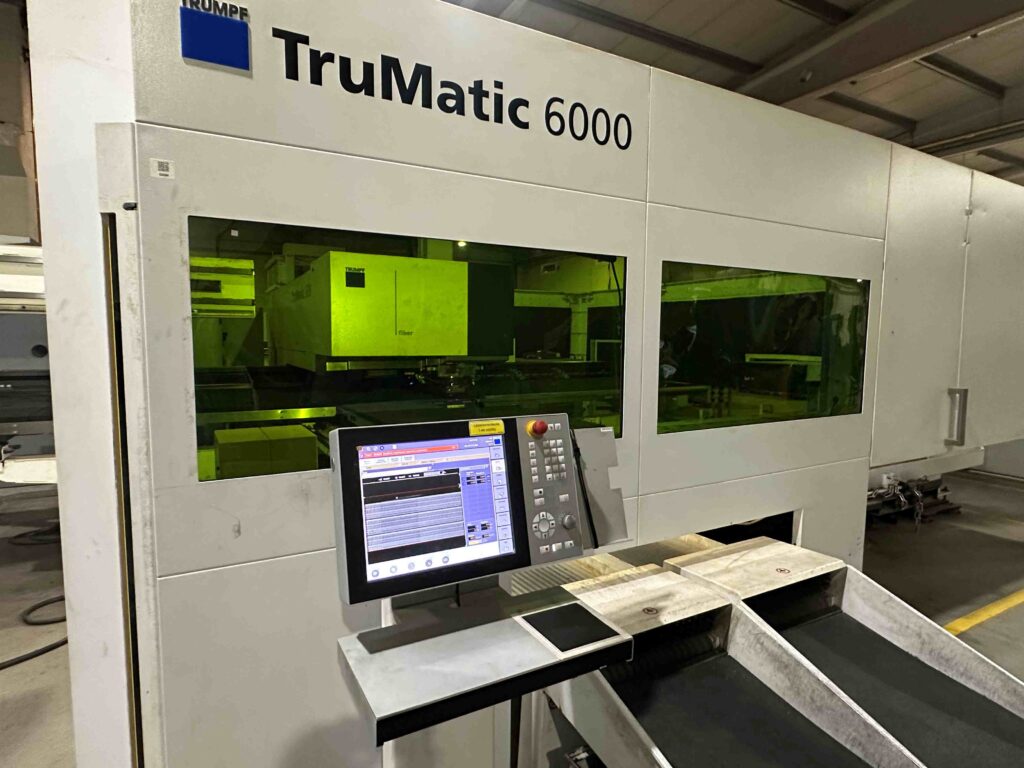

| Control
- TRUMPF control based on Bosch Rexroth IndraMotion MTX - Control panel with TFT screen 17" - Integrated technology data - Programmable cutting gas pressure - Interface Teleservice via internet - Automatic shutdown with Wakeup function - NC program management - Production plan |
|
| Data transfer
- USB interface and network connection - Network connection RJ45 |
|
| Safety
- CE marking - Multi-beam light barriers - Fast shutdown of drives - Laser guard against scattered radiation - Compact dust extractor - Monitoring system for gas pressure, temperature and cooling water |
|
| Advanced standard configuration
- 1st index pin position right hand inner side - 2 finished part containers - Chip container - Chiller unit - First filling with oil |
|
| Services
- Installation, start-up and instruction - Network installation via Teleservice |
|
| Advanced equipment:
|
||||
| Benefits packages
|
||||
| Punch quality package | ||||
| § Function MultiShear
§ Function deburring and roller technology § Adaptive stroke calibration § StripLine |
||||
| Forming package | ||||
| - Function tapping with breakage control
- Function marking / rapid beading - Function MultiBend - Height-adjustable clamps |
||||
| Advanced punching equipment
|
||||
|
||||
|
||||
|
||||
|
||||
|
||||
|
||||
|
||||
| Advanced machine equipment:
|
||||
|
||||
|
||||
|
||||
|
||||
|
||||
| Special thin sheet processing:
|
||||
|
||||
|
||||
| Data transfer:
|
||||
|
||||
|
||||
|
|
Parts conveyor belt: | |||
| Parts conveyor belt punch and laser side | ||||
| SheetMaster automation:
|
||||
| SheetMaster 3000 x 1500 mm (AK04) | ||||
| - Suction frame
- Unloadng of parts - Loading of blanks - Peeler suction cup - Vacuum sensoric - Double sheet check (process reliable peeling) - Suction plate module - Automatic clamp closing |
||||
|
||||||
|
||||||
|
||||||
|
||||||
|
||||||
| Additional package of suction cups | ||||
| - 3 large-surface suction cups, 6 individual suction cups, with vacuum generation | ||||
| Second additional suction package | ||||
| - 3 large-surface suction cups, 6 individual suction cups, without vacuum generation | ||||
| Unloading monitoring of laser parts | ||||

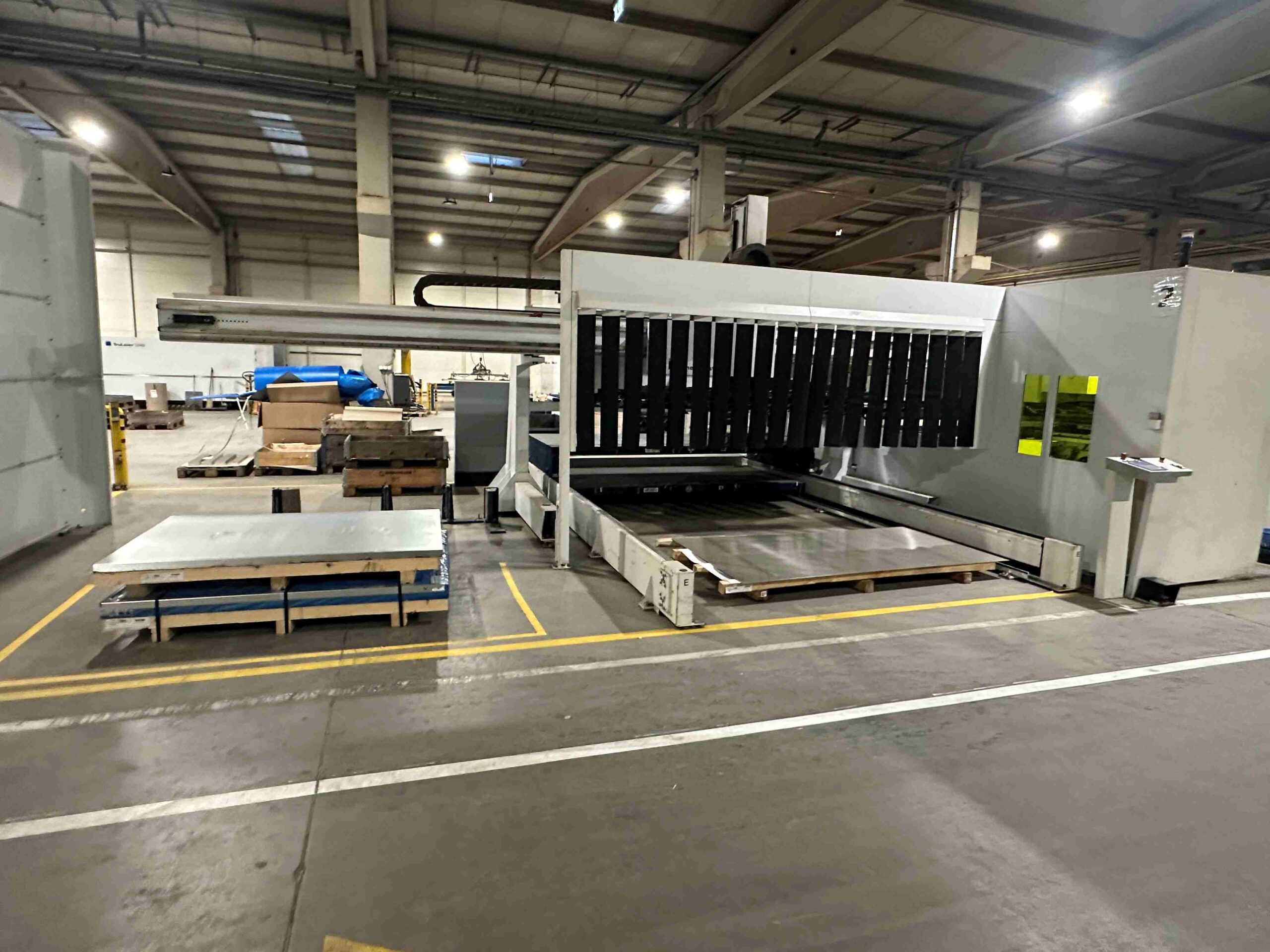

| GripMaster automation:
|
||||
| GripMaster 3000 x 1500 mm | ||||
| - 3 scrap skeleton grippers therefrom 1 with sensors
- Scissor table 400 mm - Tiltable scrap skeleton pallet 3000 x 1500 mm |
||||
