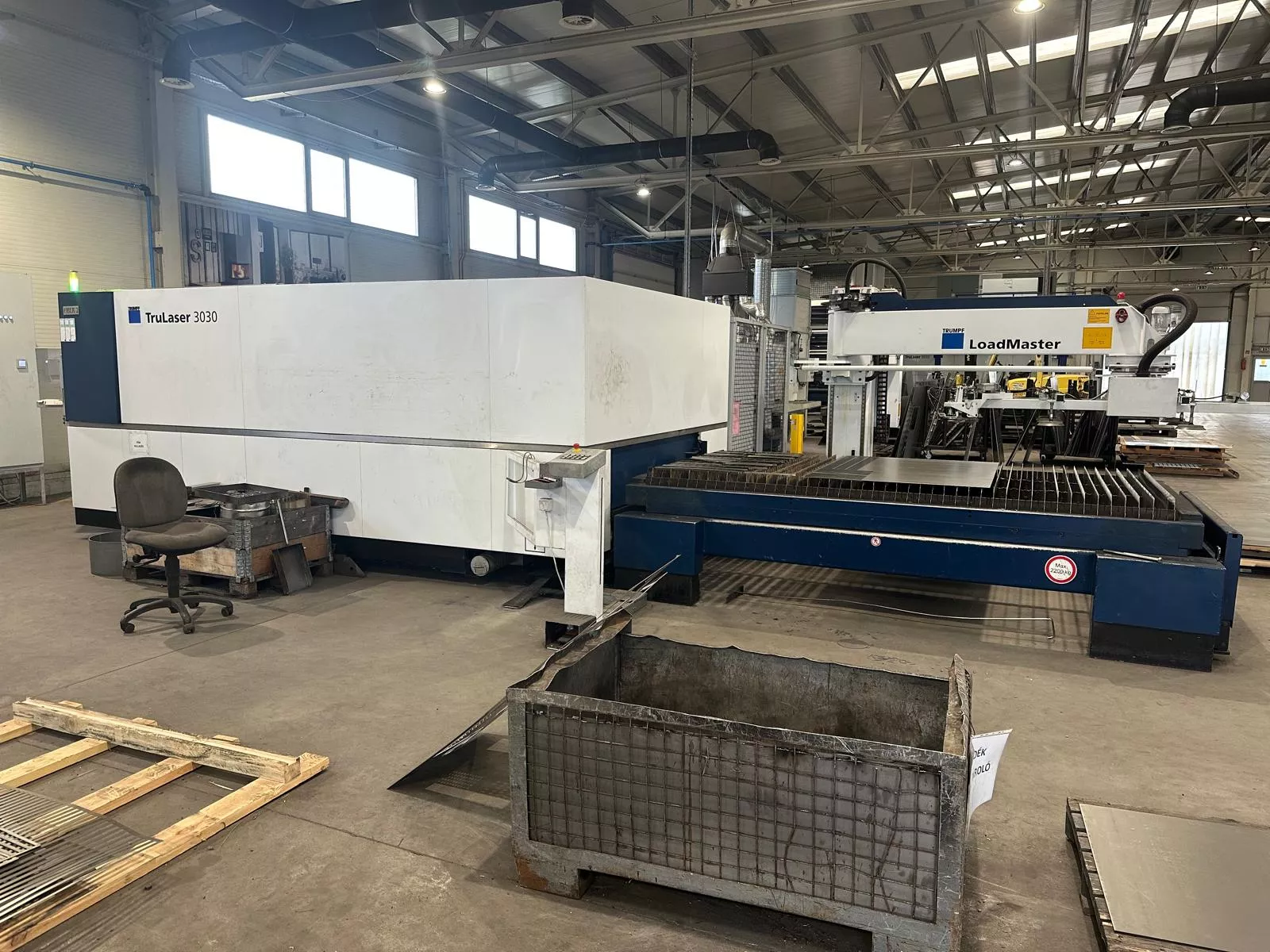

Machine

• Working range: 3000 x 1500 mm
• Box frame
• Longitudinal conveyor belt
• Motion unit for high-precision processing
• Gantry drive in combination with linear direct drives
• Process cooler for machine and laser (water/air)
• Work area illumination
• Pilot laser
• Spraying equipment
• Automatic nozzle cleaning
• Integrated electrical cabinets
• Integrated cabinet
• Closed beam guidance via laser light cable (LLK)
• Machine status light
• Transport and installation device

TRUMPF laser

• Excitation using pump diodes
• Laser power control

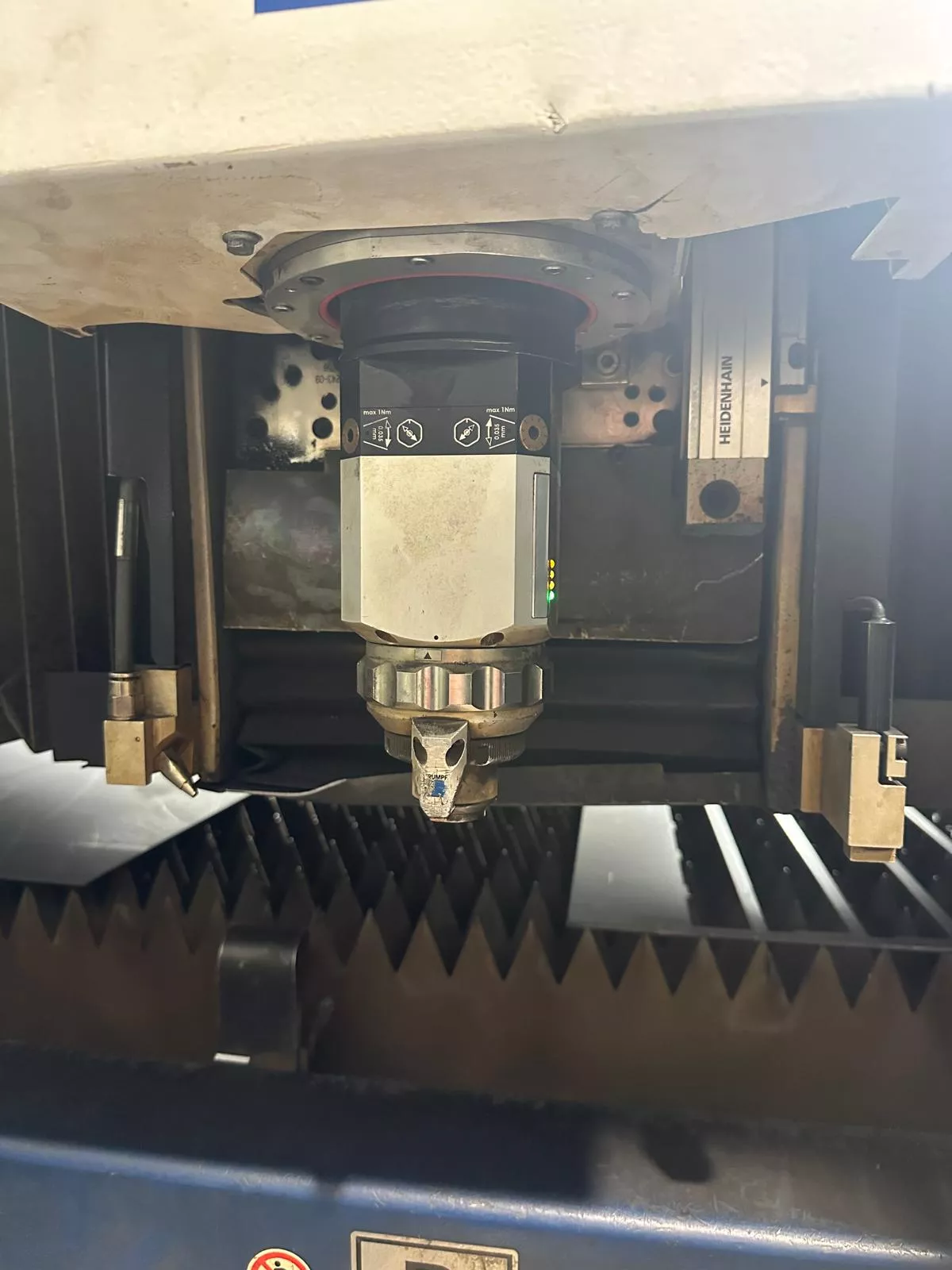

Cutting unit

• Single cutting head strategy
• Universal cutting unit with adaptive lens system
• Protective glass
• Online condition checking of protective glass
• Automatic nozzle centering

Control

• Quick post-production
• SINUMERIK 840D SL control

Cobpsxw Uy Do Epbyhsrk

• Ergonomic control panel with 21.5" wide-screen multi-touch color display
• Integrated technology data
• Auto-shutdown
• Programmable cutting gas/pressure selection
• Microweld
• Remote support interface
• Production plan
• Multi-sheet processing
• Condition Guide
• Cutting Guide

Functions

• AdjustLine
• ControlLine
• FastLine
• FlyLine
• FocusLine
• NitroLine
• PierceLine
• PlasmaLine
• Copper cutting package
• Brass cutting package

Data transmission

• USB interface
• RJ45 network interface
• Central Link
• Online Update Manager

Safety

• CE marking and EC Machinery Directive
• Light barriers
• Multi-chamber compact dust extractor
• Enclosed protective housing with certified door viewing panel, right

Advanced standard configuration

• Compact dust extractor
• Sliding roof

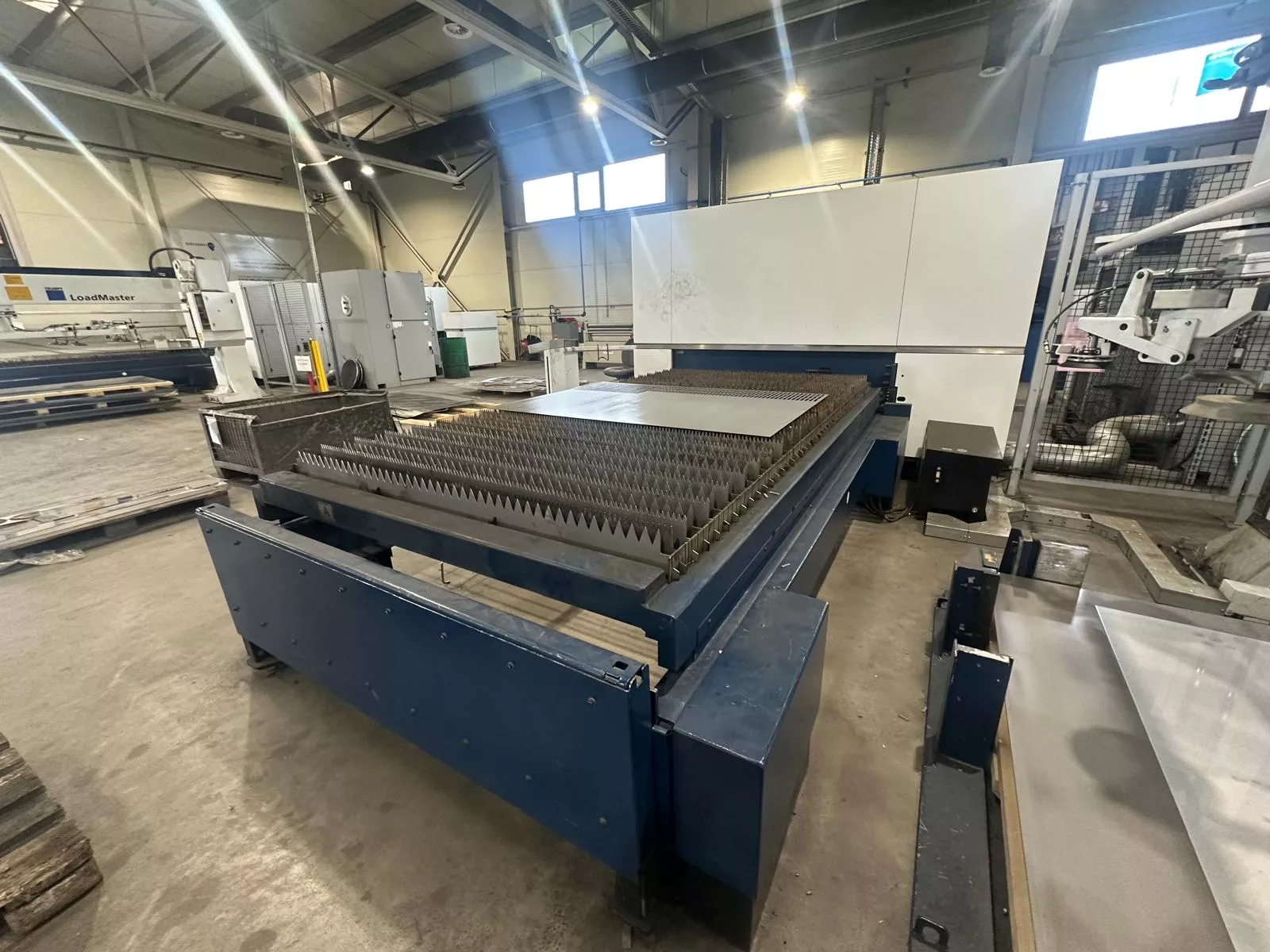

• Slats made of mild steel
• TruDisk power supply via the machine

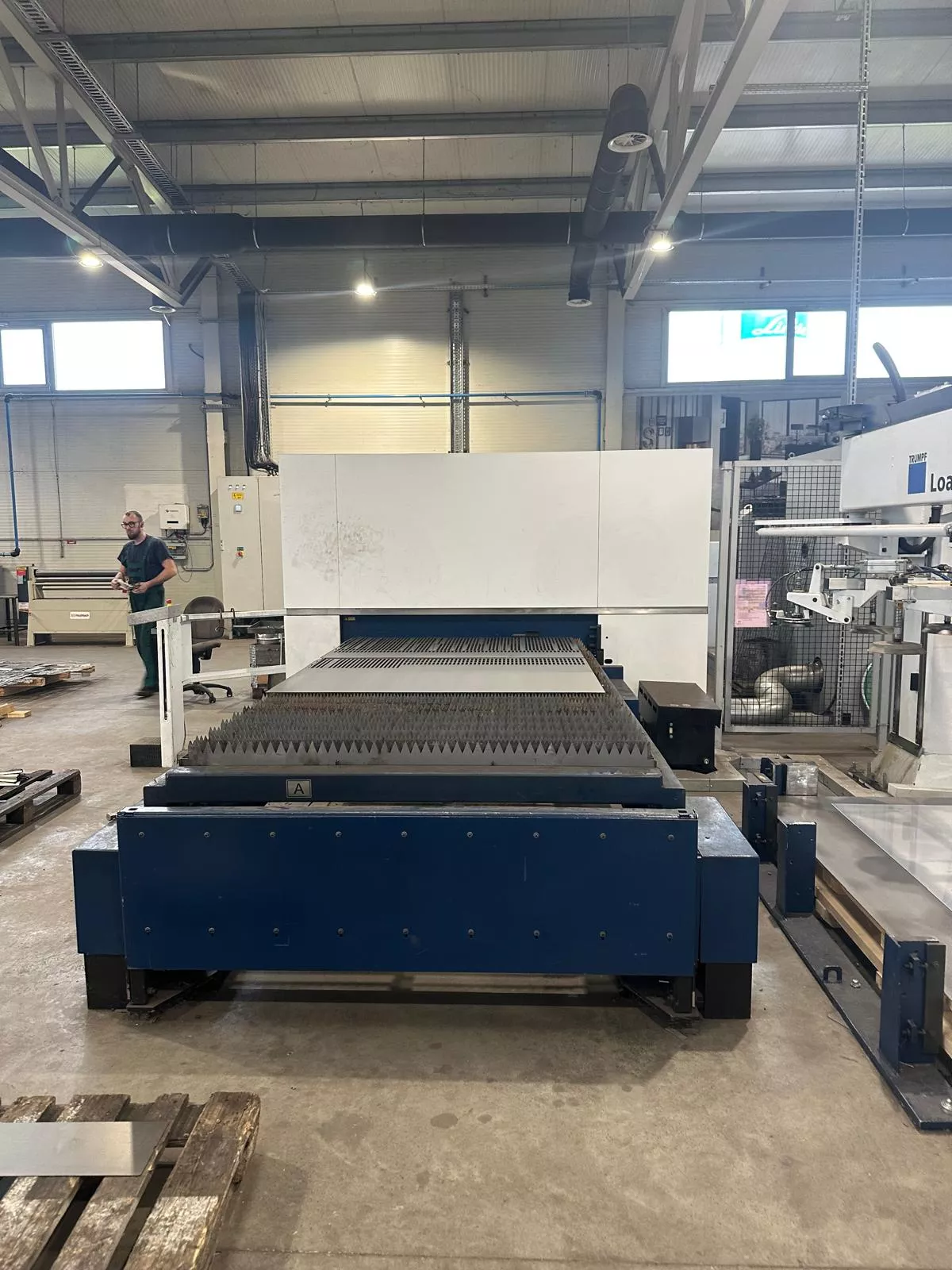

• Automatic pallet changer in longitudinal direction
• Machine ambient temperature 5 to 40°C / 45 °C
• External solid-state laser TruDisk 4001 with one laser output
